Industrial Grinding Wheels

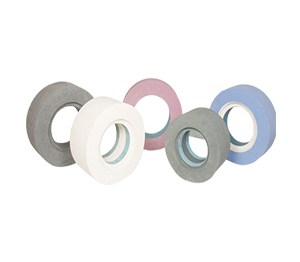

Centreless Wheels

  • Centreless grinding is grinding the outer surface of any cylindrical part, supported without centres on a stationary work rest blade and moving between the grinding wheel and the regulating wheel.
  • Normal speed of operation: 25 to 45 MPS.
  • Sterling’s Centreless grinding wheels have versatile application in Bearing, Auto and Auto Components, Cutting Tools, Stainless Steel Bar, Fastnerand other General Engineering Industries.
  • Suitable for machines like HMT. Cincinnati. Foldage, Solitaine, WMW. Micromalic, Jyothl, Scarto, Parishudh, Lidkoping etc.

Nut Inserted (F Type) Wheels
Call US :+91 8130755757

Email: rishi@aroraitpl.com Get Quote's

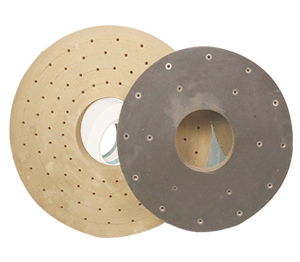

Nut Inserted (F Type) Wheels

  • Disc grinding is The principalsion of flat surfaces by presenting the work piece to the wheel face in horizontal or vertical spindle machines. In double disc grinders, opposite and parallel surfaces are ground flat at high rates of principalsion providing good surface finish.
  • Sterling offers specially designed disc grinding wheels with special bond systems, which is The best in India.
  • Suitable for machines like Gardner, Besley, Diskus, Foldage, Nippie, Modular, Parivartan, OMD, Bennet, Rolland etc.

Crank Shaft Grinding Wheels
Call US :+91 8130755757

Email: rishi@aroraitpl.com Get Quote's

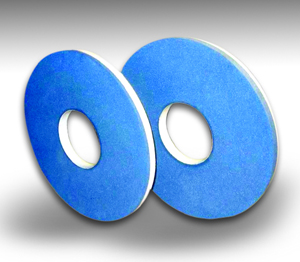

Crank Shaft Grinding Wheels

  • Crank Shaft grinding is the cylindrical grinding of the crank pin or bearing by plunge form method. Normal speed of operation: 33 to 45 MPS.
  • Sterling’s crank shaft wheels grind freely, generate minimum heat and at the same Time maintain its form and size for a sufficient length of time. It is used by all types of crank shaft manufacturers and regrinding industry.
  • Suitable for machines like Landis, Rial, Norton, Naxos Union, Newall, Churchill, Parishudh etc.

Resin Bonded Snagging Wheels
Call US :+91 8130755757

Email: rishi@aroraitpl.com Get Quote's

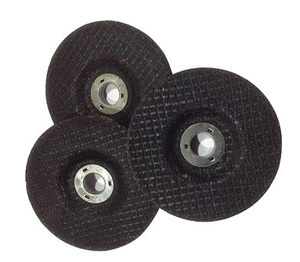

Resin Bonded Snagging Wheels

  • Sterling’s Snagging Wheels are manufactured for a wide use of heavy stock removal in foundries, welding shops, metal fabricators, steel mills, shipyards etc.
  • Sterling offers a complete line of engineered snagging wheels of high performance and many types such as Straight Wheels, Flaring Cups, Cones and Mounted Points.
  • Snagging wheels can be used on portable hand grinder, Pedestal grinder and swing frame grinder.
  • Typical Application : Smoothening of weld seams, Cleaning castings, Preparing surfaces for plating or painting, BIiiet conditioning etc.

Gear Grinding Wheels
Call US :+91 8130755757

Email: rishi@aroraitpl.com Get Quote's

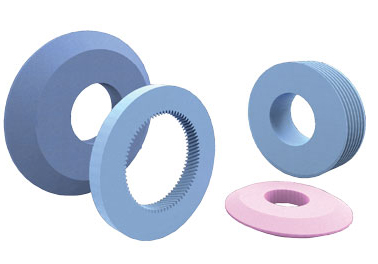

Gear Grinding Wheels

Gear grinding is a finishing process to remove considerable amount of metal after heat. Treatment operation to obtain a predetermined quality. Gear grinding is done to meet the exact requirement of form, dimension and surface texture. Gear grinding gives a very high degree of dimensional accuracy.


Methods of Gear grinding
Call US :+91 8130755757

Email: rishi@aroraitpl.com Get Quote's

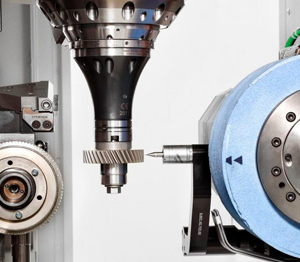

Methods of Gear grinding

  • Generating type method – In this process, the wheel progressively approaches the root or the gear from the tip or the gear tooth. Suitable for Machines like Maag & Hoffler.
  • Form / Profile grinding – In this process the Wheel is In constant touch with the work piece.
    Suitable for Machines like Reishauer & Csepel.

Internal Grinding Wheels
Call US :+91 8130755757

Email: rishi@aroraitpl.com Get Quote's

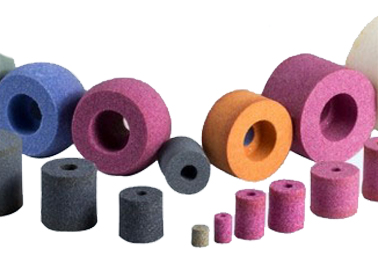

Internal Grinding Wheels

  • Internal grinding wheels are used In principalsion of precision components demanding a highly accurate geometry and surface.
  • Internal grinding wheels are used for following components:
    • Bearing
    • Small cylinder
    • Compressor parts
    • Injection nozzle parts
    • Gear parts
    • Hydraulic cylinders
    • Tappets
